M Range Pods

Modular Systems for Residential Estates & Mixed-Use Developments

The KaacKai M series Pod is a compact yet robust wastewater treatment system for residential estates, commercial developments, lodges, and mixed-use properties, treating up to 30 m³/day.

Each unit is easy to maintain and combines advanced biological treatment with low energy use, ensuring high-quality, EU-standard effluent suitable for reuse.

  • Modular scalability for phased developments
  • High treatment capacity up to 20 m³/day
  • Energy-efficient with low operating costs
  • Integrated KaacKai E-III control unit
  • Built-in or external buffer tank options

M1-3C & M1-4C Pod

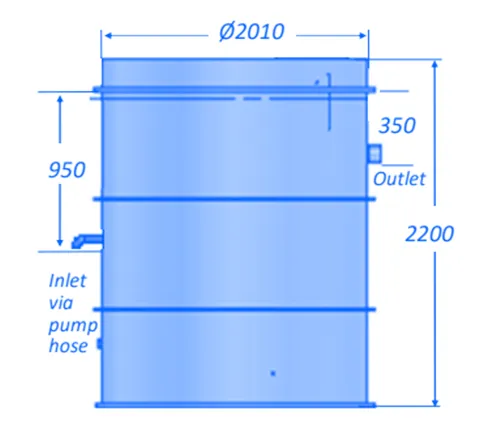

M2 Pod

M3 & M3-2C Pod

Spec sheet

Dimensions & Capabilities

SPECS

M1-3C

M1-4C

M2

M3

M3-2C

Design range
(L/day, per PE*)

M1-3C

25

M1-4C

35

M2

35-60

M3

60-120

M3-2C

80-120

Height (mm)

M1-3C

2200

M1-4C

2200

M2

2200

M3

2200

M3-2C

2200

Diameter (mm)

M1-3C

2010

M1-4C

2010

M2

2010

M3

2300

M3-2C

2300

Weight (kg)

M1-3C

570

M1-4C

590

M2

630

M3

700

M3-2C

700

Weight with water (kg)

M1-3C

5970

M1-4C

5990

M2

5990

M3

7350

M3-2C

7350

Power consumption (kWh/year)

M1-3C

2400

M1-4C

3100

M2

2650

M3

4190

M3-2C

4190

Integrated buffer tank/pump well

M1-3C

Yes

M1-4C

Yes

M2

No

M3

No

M3-2C

No

Size of internal pump well (L)

M1-3C

1200

M1-4C

1200

M2

NA

M3

NA

M3-2C

NA

Number of blowers (pcs)

M1-3C

3

M1-4C

4

M2

1

M3

2

M3-2C

2

Tank material

M1-3C

PP

M1-4C

PP

M2

PP

M3

PP

M3-2C

PP

Pipe material

M1-3C

PVC

M1-4C

PVC

M2

PVC

M3

PVC

M3-2C

PVC

Outlet & sludge-return pipe (mm)

M1-3C

110

M1-4C

110

M2

110

M3

110

M3-2C

110

*“1 PE (person equivalent) = 60g BOD, 13g Ntotal and 2.5g Ptotal, 125–180 L/day”
*Design capacity is based on domestic/residential wastewater
