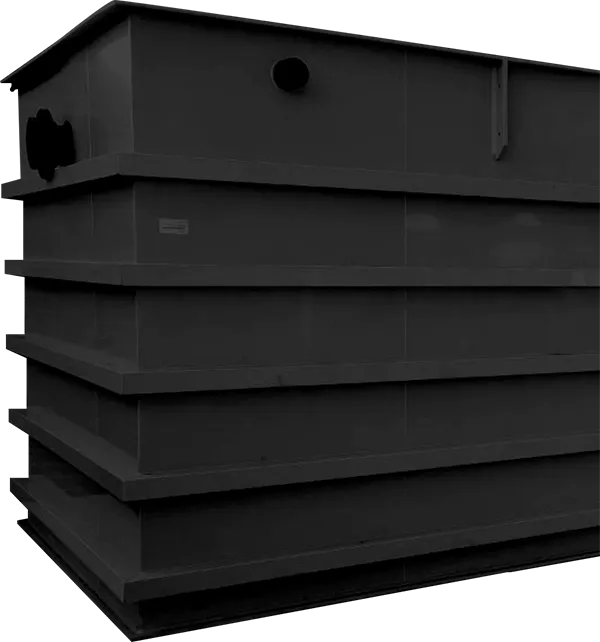

L Range Pods

Scalable Solutions for Hospitality, Residential & Commercial Estate

The KaacKai L series offers high-volume wastewater treatment and recovery for hotels, resorts, residential, commercial and mixed use developments.

Each system can treat 9–34 m³/day and can be configured in series or parallel to handle higher flows, ensuring consistent, and efficient water treatment for reuse.

Spec sheet

Dimensions & Capabilities

SPEC

L1

L2

L3

L4

Capacity range (people/day)

L1

25

L2

50

L3

75

L4

100

Height (mm)

L1

2215

L2

2215

L3

2215

L4

2215

Width (mm)

L1

2160

L2

2160

L3

2160

L4

2160

Length (mm)

L1

2800

L2

3300

L3

3950

L4

5450

Weight (kg)

L1

600

L2

900

L3

1350

L4

1550

Weight with water (kg)

L1

12,454

L2

14,871

L3

18,073

L4

24,623

Power consumption (kWh/day)

L1

29.7

L2

40.3

L3

60.4

L4

63.7

Inlet/outlet pipe diameter (mm)

L1

110/110

L2

110/110

L3

160/160

L4

160/160

Air pipes diameter (mm)

L1

50

L2

50

L3

50

L4

50

Tank material, outer tank + cover

L1

Polypropylene

L2

Polypropylene

L3

Polypropylene

L4

Polypropylene

Piping material

L1

PVC

L2

PVC

L3

PVC

L4

PVC

Sludge return pipe (mm)

L1

110

L2

110

L3

110

L4

110

Water load (m³/day/unit)

L1

10-40

L2

18-60

L3

25-80

L4

35-110

No. of electrical phases required

L1

3

L2

3

L3

3

L4

3

*“1 PE (person equivalent) = 60g BOD, 13g Ntotal and 2.5g Ptotal, 125–180 L/day”
*Design capacity is based on domestic/residential wastewater
