L Combi Pods

Smart, scalable wastewater treatment for smaller communities.

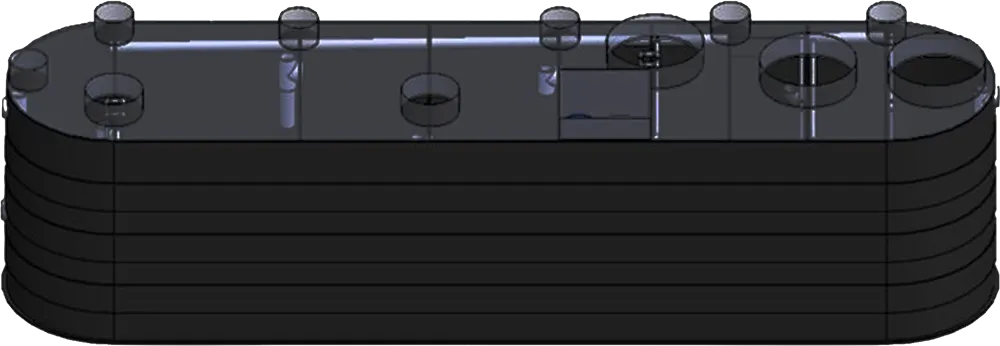

KaacKai L Combi treatment plants are commonly used for treating wastewater from hotels, resorts, schools, estates, and small communities. The systems are an all-in-one treatment plant, installed below ground.

The KaacKai L Combi is installed below ground on either a gravel or concrete foundation

Spec sheet

Dimensions & Capabilities

SPECS

1 A/B

2 A/B

3 A/B

4 A/B

5 A/B

6 A/B

7 A/B

Height (mm)

1 A/B

2.42 2 A/B

2.42 3 A/B

2.42 4 A/B

2.42 5 A/B

2.42 6 A/B

2.42 7 A/B

2.42 Width (mm)

1 A/B

2.30 2 A/B

2.30 3 A/B

2.30 4 A/B

2.30 5 A/B

2.30 6 A/B

2.30 7 A/B

2.30 Length (m)

1 A/B

4.78 2 A/B

6.98 3 A/B

5.78 4 A/B

6.98 5 A/B

8.50 6 A/B

10.2 7 A/B

11.13 Weight (kg)

1 A/B

1400

2 A/B

1500

3 A/B

1650

4 A/B

1950

5 A/B

2550

6 A/B

3250

7 A/B

3650

Weight with water (kg)

1 A/B

19300

2 A/B

22300

3 A/B

23553

4 A/B

28830

5 A/B

35723

6 A/B

43544

7 A/B

47711

Septic tank size (A/B) m³

1 A/B

6.7 2 A/B

8.2 3 A/B

9.1 4 A/B

11.8 5 A/B

15.2 6 A/B

19.7 7 A/B

20.8 Buffer tank size (m³)

1 A/B

1.25 2 A/B

1.55 3 A/B

1.65 4 A/B

2.25 5 A/B

3.00 6 A/B

3.75 7 A/B

4.50 Power consumption at max load (kWh/d)

1 A/B

6.3 2 A/B

6.3 3 A/B

6.3 4 A/B

6.3 5 A/B

8.9 6 A/B

12.7 7 A/B

12.7 Inlet/outlet pipe (mm)

1 A/B

160/160

2 A/B

160/160

3 A/B

160/160

4 A/B

160/160

5 A/B

160/160

6 A/B

160/160

7 A/B

160/160

Blowers (Brand: Thomas)
Installed in the integrated tech box

1 A/B

1x LW 400

2 A/B

1x LW 400

3 A/B

1x LW 400

4 A/B

1x LW 400

5 A/B

2x LW 400

6 A/B

2x LW 400

7 A/B

2x LW 400

Pumps in pump well
(Brand: Pedrollo)

1 A/B

2x Tritus
TIGm 0.55

2 A/B

2x Tritus
TIGm 0.55

3 A/B

2x Tritus
TIGm 0.55

4 A/B

2x Tritus
TIGm 0.55

5 A/B

2x Tritus
TIGm 0.55

6 A/B

2x Tritus
TIGm 0.75

7 A/B

2x Tritus
TIGm 0.75

Pumps in buffer tank
(Brand: Pedrollo)

1 A/B

TOP 1
Vortex

2 A/B

TOP 1
Vortex

3 A/B

TOP 1
Vortex

4 A/B

TOP 1
Vortex

5 A/B

TOP 1
Vortex

6 A/B

TOP 1
Vortex

7 A/B

TOP 1
Vortex

*“1 PE (person equivalent) = 60g BOD, 13g Ntotal and 2.5g Ptotal, 125–180 L/day”
*Design capacity is based on domestic/residential wastewater
